Product code
24PR2201

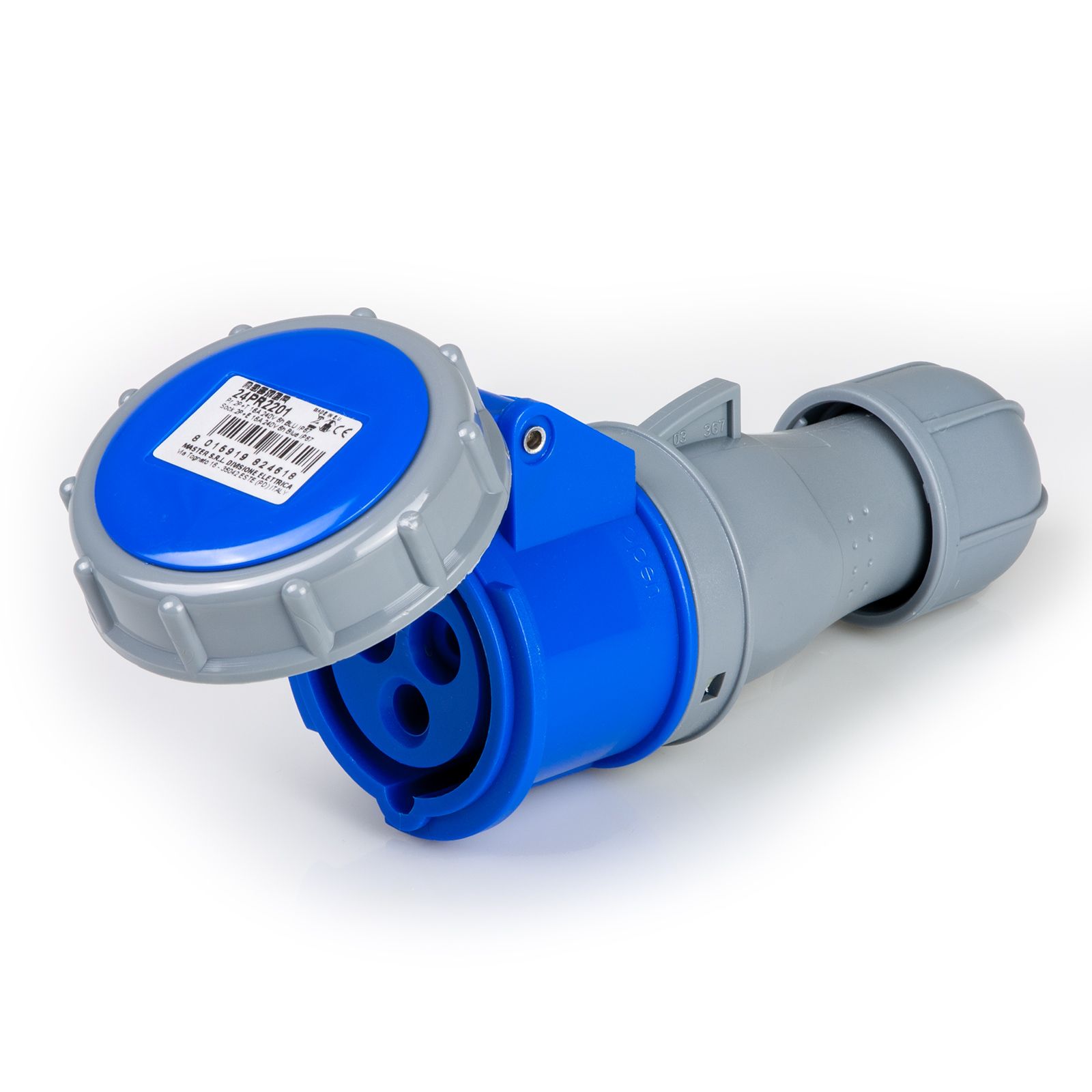

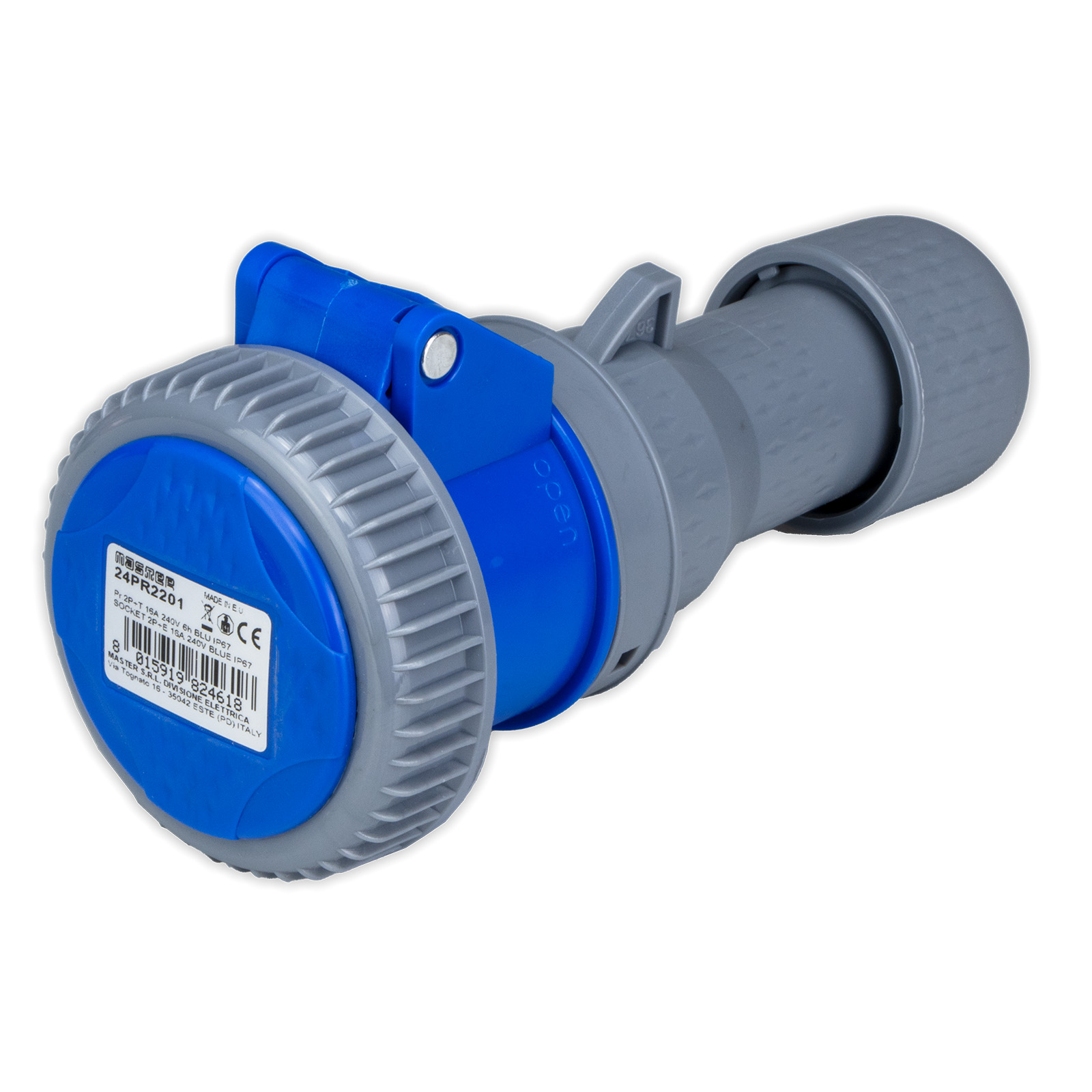

Sock.2P+E 16A 240V 6h Blue IP66/IP67
Product in stock
Mobile socket 2P+E 16A 200-250V 6h, blue, IP66 and IP67 protection
Technical details
| Color | Blue |
|---|---|
| Size | 160x70x80 mm |
| Net weight | 180 g |
| ETIM code | EC001320 |
| Combined Nomenclature (CN) | 85366990 |
Characteristics
| Plug/socket type | Presa volante |
|---|---|
| Current rating | 16A |
| Poles | 2P+T |
| Earth position | 6h |
| IP protection rating | IP67 |
| Voltage | 200-250V |
| Voltage color | blu |
Marks and standards
Compliant with:
| 2012/19/EU (RAEE) | Waste electrical and electronic equipment (WEEE) |
| 2014/35/EU (LVD) | Low Voltage Directive (LVD) |
| CEI EN 60309-1:2000 | Plugs, socket-outlets and couplers for industrial purposes – Part 1: General requirements |
| CEI EN 60309-2:2000 | Plugs, fixed or portable socket-outlets and appliance inlets for industrial purposes - Part 2: Dimensional compatibility requirements for pin and contact-tube accessories |
| EN 60529:1991+A2/AC:2019 | Degrees of protection provided by enclosures (IP Code) |
Packages
| EAN | Qta | Imballo | Dimensioni | Peso lordo |
|---|---|---|---|---|
| 8015919824618 | 1 | No packaging | 200 g | |
| 8015919248483 | 10 | Box | 2,0 Kg | |
| 8015919949557 | 150 | Carton box | 30,0 Kg |
