Product code 21039

Two interlocked pushbuttons 2P NO 10A

Product in stock

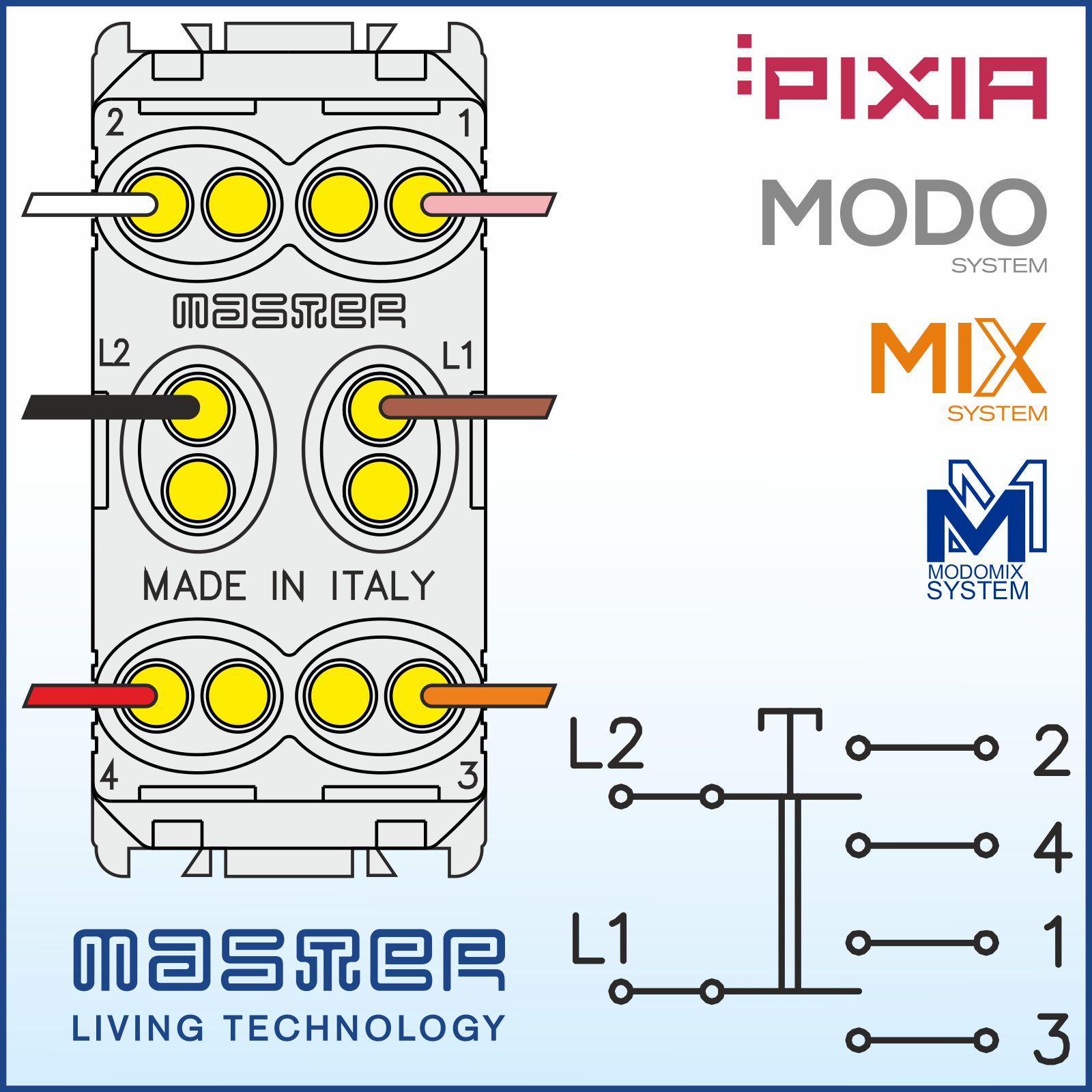

Double push button MIX glossy white 2P NO + 2P NO 10A 127/230V~, 6 terminals, 1 module, front button in a single piece with central rest position and intrinsic interlock.

Technical details

Color MIX white
Size 22x30x47 mm
Net weight 36 g
ETIM code EC000125
Combined Nomenclature (CN) 85365080

Marks

Marchio 1 Marchio 11 Marchio 17

Packages

EAN Qta Imballo Dimensioni Peso lordo
8015919103843 1 No packaging 42 g
8015919103850 4 Cardboard box 90x50x65 mm 168 g
8015919103867 120 Carton box 300x260x150 mm 5,0 Kg

Documents

CERTIFICADO DE CONFORMIDAD DE PRODUCTO (NOM) - ARTEFACTO ELECTRICO (tomas) PDF - ES CERTIFICADO DE CONFORMIDAD DE PRODUCTO (NOM) - ARTEFACTO ELECTRICO PDF - ES Dichiarazione di conformità CE APPARECCHI DI COMANDO MIX NON AUTOMATICI DTC - EN, IT
